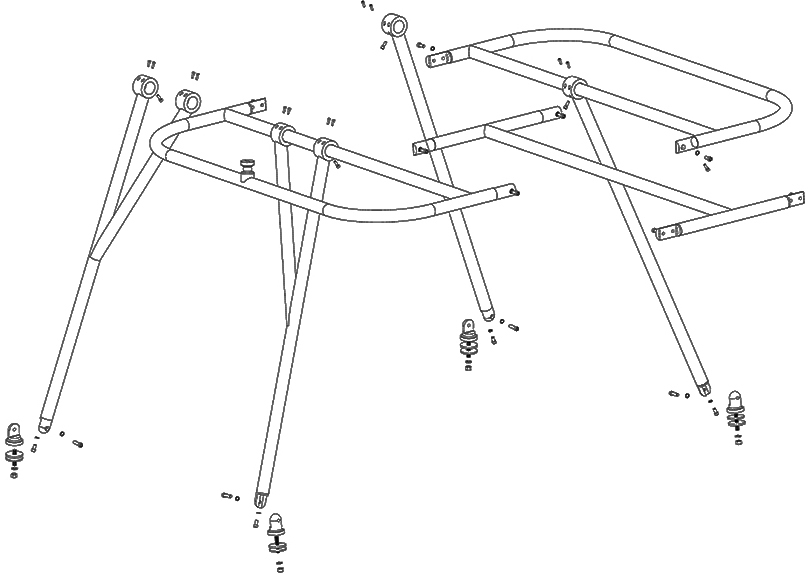

EXPLODED VIEW OF THE DOLPHIN WALK AROUND T TOP FOR REFERENCE
T Top Mounting Kit
STEP 1: Assemble the front and centre section of the top frame
There are 3 separate pcs in the top frame, connect the lap joints with bolts to joint the 3 pcs to 1 top frame.
STEP 2: Attach the Side Supports to the Assemble Top Section
STEP 3: Mark where you want to mount the front legs on your boat, measure the width from the left to right, then putting 2 rubber collars on the front bow, make sure the position is symmetrical.
STEP 4: Mark where you want to mount the rear legs on your boat, note the distance between the front and rear mount is adjustable, the more closer the higher, you can get up to 63in heigt from the mounting level when all 4 legs keep vertical. After get the best position of the rear mounts, measure the width from the left to right, then putting 4 rubber collars on the rear bow, make sure the position is symmetrical.
STEP 5: Attach the T top to the floor of the boat
Place the T Top you have assemble on the marks you have made on your boat. Now you can pre drill and use the bolts and backing plates and lock in you mounting points NOTE: Check under the floor for any wires or objects before drilling holes.
Tips: to give your t top the best strength, please drill through the clamp to the tube using the guide hole on the clamp, and screw the bolt inside the hole, this will stop any shaking during driving the boat, even playing wakeboarding.
STEP 6: Attaching the cover to the top frame.
CARE AND MAINTENANCE
Be sure to check and tighten all fastners and connections prior to every use Be cautious when towing or driving under obstacles, low hanging structures or trees Leave dolphin t top in the erect position when towing behind a vehicle Use soap and water to clean your tower. Avoid abraisive material that might scratch or damage the tower protective !nish. Always rinse and wipe down tower after contact with salt (brackish) water.
WARRANTY
Dolphin T Tops warrants the product (not including other 3rd party accessories) against manufactures defects. To claim you must contact Dolphin T Tops or is Distributor. The product/part is to be sent to the Distributor for inspection where it will either be repaired or replaced. (unless otherwise agreed in writing) The customer is liable for costs associated in shipping the product/part to Dolphin T Tops.
Dolphin is not responsible for personal injury or damage to the boat caused by the use of the t top or any transport charges or cost of installation or removal of the t top. Dolphin is not liablity for direct or indirect or consequential damages resulting from delay or improper installation.
Warranty does not cover Anodised, polished or powder coated surfaces as well as any hardware corrosion they are speci!cally excluded as their care and use can not be controlled by Dolphin.
Warranty does not cover the spider coat gel cracking or damage from the installation or use of the t top on your boat. No dealer, retailer or manufacturer is the agent and may not assume any liablity in connection with this warranty. This warranty is in lieu of all.
WARNING
The construction of your boat, design, thickness of "ooring deck and walls and overall design may cause movement at the mounting points. If the construction of you boat causes movement at the mounting points or incorrect mounting location creates added pressure on joints increasing movement of the t top it voids warranty. If in doubt do not install the t top Check all bolts and parts prior to use, especially after towing behind a vehicle, lowering and raising after storage.
WARNING
Do not stand, climb or jump o# tower, do not tow the boat behind a vehicle with the t top lowered. Do Not Ski, wake,tow tubes, boats or other watercraft from the tower. Watch out whilst moving under objects, such as bridges, low building and trees.
